Description:

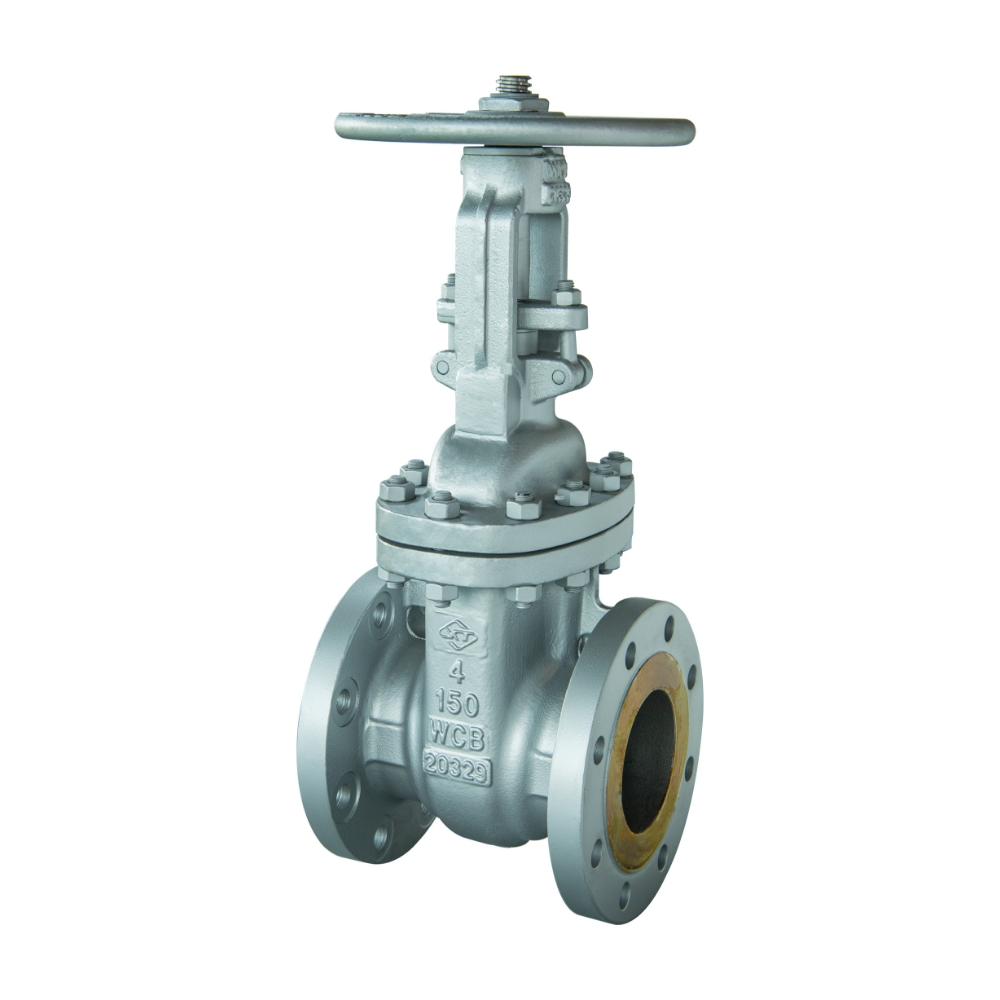

Wedge gate valves are primarily used for on/off services and isolation within industrial piping systems. They operate with a gate-like disc that moves perpendicular to the flow path. The wedge gate valve is often chosen for its ability to handle a wide range of pressures and temperatures. It is available in full port configurations and can be made from different materials such as cast steel, stainless steel, and various alloys.
Key Specifications:
Nominal Diameter: NPS 2" – 60"
Nominal Pressure: CL150 – 2500LB
Medium Temperature: -50 °C to 700 °C
Valve Body Material: Cast steel A216, WCB (carbon steel); Stainless steel (CF8, CF8M, CF3M, CF3); Low-temperature steel; Chromium-molybdenum steel, etc.
Drive Mode: Electric, Pneumatic, Hydraulic, Gear
Design and Manufacture: API600
Main Application Areas: Petrochemical, thermal power plants, water supply, sewage treatment engineering, etc.
Advantages:
Low pressure drop
Straight-through flow in either direction
Suitable for high-temperature and high-pressure conditions
