Description:

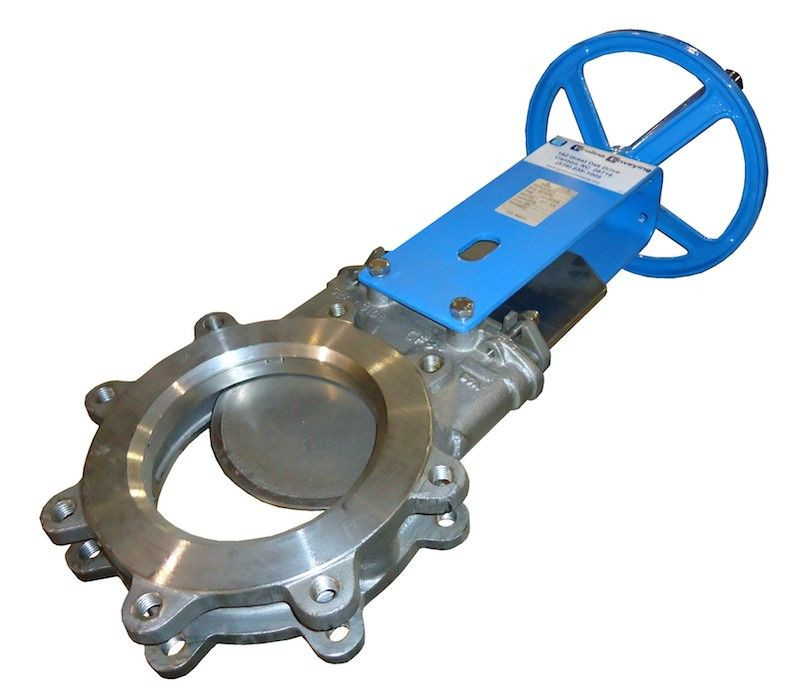

Knife Gate Valves are designed for isolating and controlling flow in large-diameter pipelines, particularly those with semi-solids or slurries. Unlike traditional gate valves, they can throttle flow at lower pressures. These valves feature a sharp-edged gate that can cut through thick media easily. Some models also feature resilient seat inserts for drip-tight shut-off.
Key Specifications:
Nominal Diameter: NPS 2" – 24"
Max Working Pressure:
DN50–DN250: 10Bar
NPS2–NPS10: 150Psi
DN300–DN450: 7Bar
NPS12–NPS18: 90Psi
DN500–DN600: 4Bar
NPS20–NPS24: 60Psi
Temperature Range: -29°C to +800°C
Seal Tightness: According to MSS SP-81
Applications: Pulp & Paper, Water Treatment, Beverage & Food, Power Plants, etc.
Types Available:
Pneumatic Knife Gate Valve
Non-rising Stem Knife Gate Valve
Wafer Knife Gate Valve
Electric Knife Gate Valve
Manual Knife Gate Valve
Bevel Gear Knife Gate Valve
