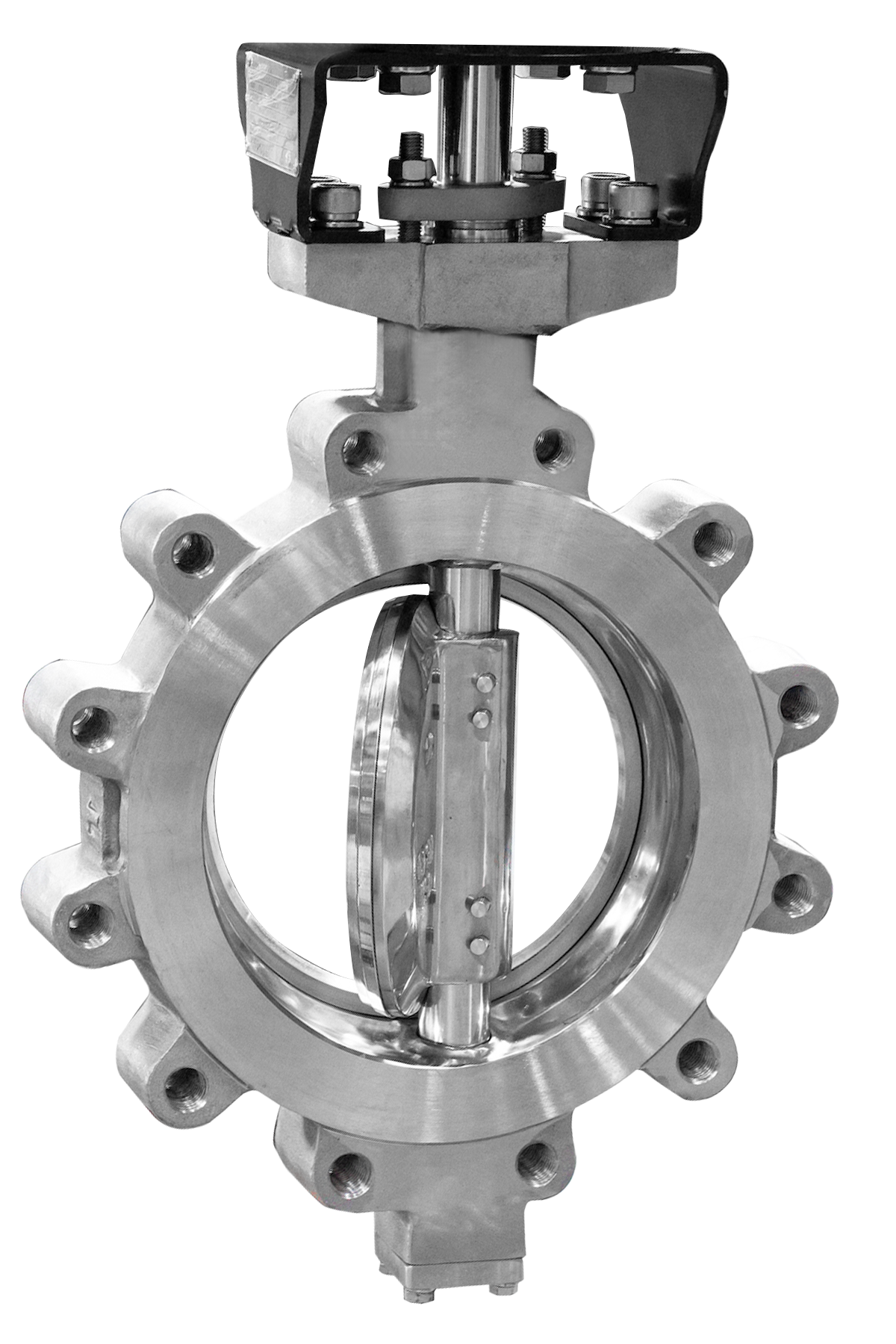

The High Performance Triple Offset Butterfly Valve (TOV) is an advanced valve design known for its superior performance in demanding applications. This valve combines the benefits of a butterfly valve with a triple offset design, ensuring tight sealing, low operating torque, and long-lasting performance. The triple offset design includes offsets in the seat, shaft, and cone angle, which helps to minimize wear, reduce friction, and prevent leakage. These valves are typically used in applications requiring precise control and high-performance sealing, such as in the oil and gas, power generation, and chemical processing industries. The valve is particularly effective in high-pressure, high-temperature environments where a reliable, tight seal is essential.
Specifications and Features:
| Feature | Specification |
|---|---|
| Valve Body Material | Carbon Steel, Stainless Steel, Alloy 20 |
| Pressure Rating | 150 to 2,500 PSI |
| Size Range | 2” to 48” |
| Temperature Range | -50°F to 850°F |
| End Connections | Flanged, Butt Weld, Lug |
| Sealing Type | Metal-to-Metal, Elastomeric (for specific applications) |
| Valve Type | Triple Offset Butterfly Valve |
| Application | Oil & Gas, Chemical, Power Generation, Water Treatment |
| Design Standard | API 609, ASME B16.34, ANSI B16.5 |
| Operating Torque | Low torque due to triple offset design |
| Leakage Rate | Very low (Class VI) |
