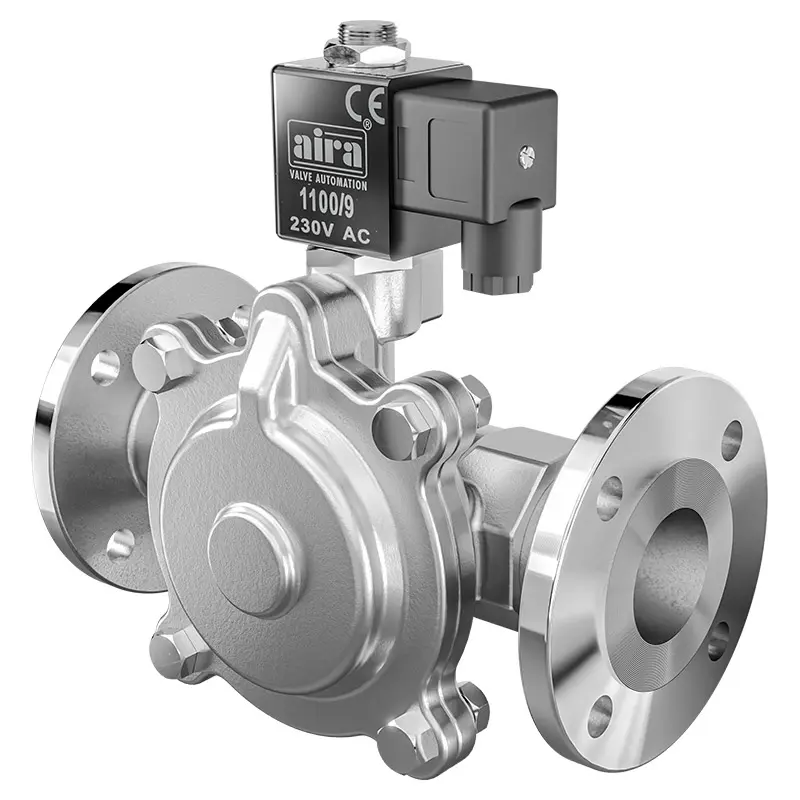

Description: A 2/2 Way Pilot Operated Diaphragm Flanged Solenoid Valve is a specialized valve that uses an electromagnetic solenoid for precise on/off control of fluid flow in a system. This valve combines the simplicity of a 2/2 way valve with the benefits of a pilot-operated diaphragm mechanism, which allows for reliable flow regulation in high-pressure environments. The diaphragm acts as a seal, and the solenoid operates the pilot valve to control the flow. The flanged connection provides a secure and leak-resistant attachment to the pipeline, making this type of valve ideal for large-diameter pipes in water, steam, and gas systems.
These valves are often used in industrial applications, including heating and cooling systems, water treatment, and oil & gas pipelines, where high flow rates and robust performance are essential. The pilot-operated mechanism enables the valve to handle higher pressure differentials than typical solenoid valves, ensuring reliability and long-lasting operation in demanding environments.
Specifications and Features:
| Specification | Details |
|---|---|
| Valve Type | 2/2 Way Pilot Operated Diaphragm Flanged Solenoid Valve |
| Function | On/Off Flow Control with Pilot Operated Diaphragm Mechanism |
| Material | Stainless Steel, Brass, Cast Iron, Carbon Steel |
| Pressure Rating | Up to 300 psi (varies depending on size and material) |
| Temperature Rating | -10°C to 120°C (14°F to 248°F) |
| Voltage | 12V DC, 24V DC, 110V AC, 230V AC |
| Connection Type | Flanged (ANSI, DIN, or other standard flanges) |
| Port Size | 1/2" to 6" (depending on application requirements) |
| Operation | Electromagnetic solenoid with pilot-operated diaphragm |
| Seal Type | NBR, EPDM, Viton, PTFE |
| Actuation Type | Electromagnetic (solenoid) |
| Applications | Water Treatment, Steam, Gas Systems, Industrial Applications |
Features:
Pilot Operated: The diaphragm ensures greater control and higher pressure tolerance than standard solenoid valves.
Flanged Connection: Secure and leak-proof installation, ideal for large-diameter pipe systems.
Versatile Material Options: Available in various materials (stainless steel, brass, etc.) for compatibility with a wide range of fluids.
High Pressure Handling: Suitable for high-pressure applications, especially in industrial and steam systems.
Fast Response Time: Quick and reliable operation due to the solenoid actuation and diaphragm mechanism.
Durable Construction: Designed for long-lasting performance with minimal maintenance.
Applications: Commonly used in systems requiring high flow rates, such as steam, water treatment, and large-scale industrial processes.
