Description:

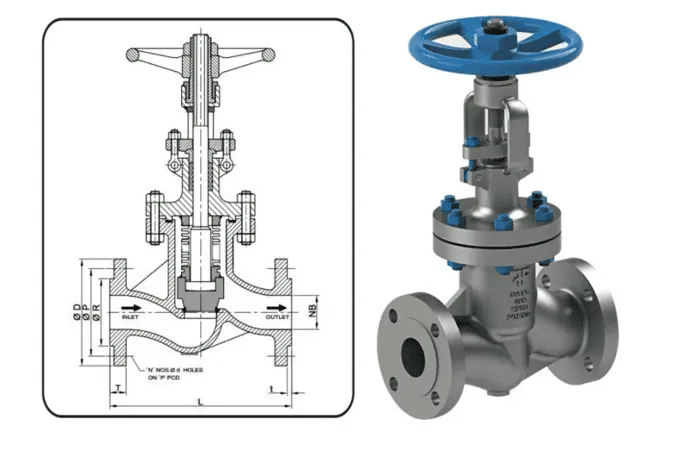

The Bellow Seal Globe Valve uses advanced metal bellows sealing technology to prevent leakage, ensuring zero emissions. The bellows are designed to withstand a high number of operational cycles, providing a long-lasting and maintenance-free solution for fluid control. These valves are ideal for industries where leakage could pose a significant risk, such as in oil, gas, and steam systems.
Key Specifications:
Nominal Diameter: DN15 – DN400
Nominal Pressure: ANSI 150Lb, DIN PN6 – PN16, JIS 10K
Material: Cast Iron, Ductile Iron, WCB, CF8, CF8M, CF3, etc.
Connection Type: RF Flange
Drive Mode: Handwheel, Worm Gear
Medium: Water, Oil, Gas, Steam, etc.
Features:
Double sealing design (bellows + packing)
Zero leakage through the stem
Long service life due to metal bellows technology
Corrosion-resistant and wear-resistant surfacing for sealing surfaces
Maintenance-free operation
