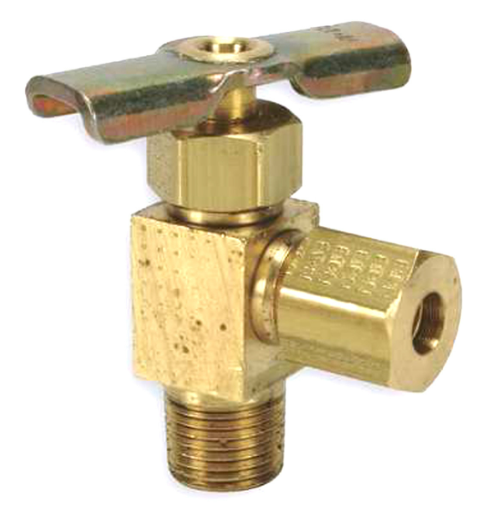

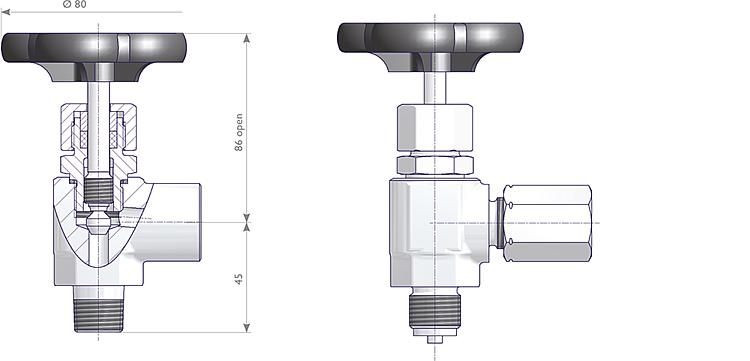

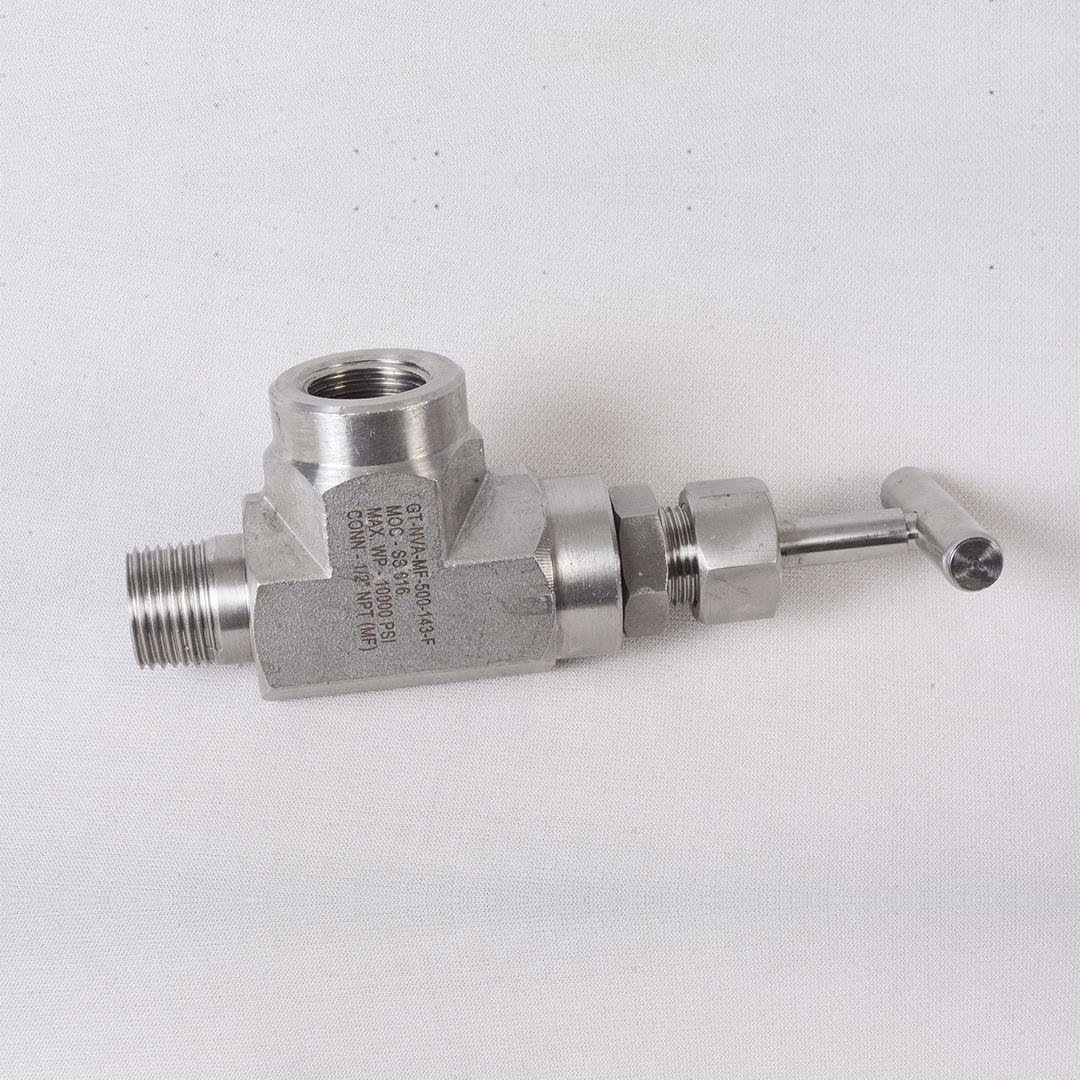

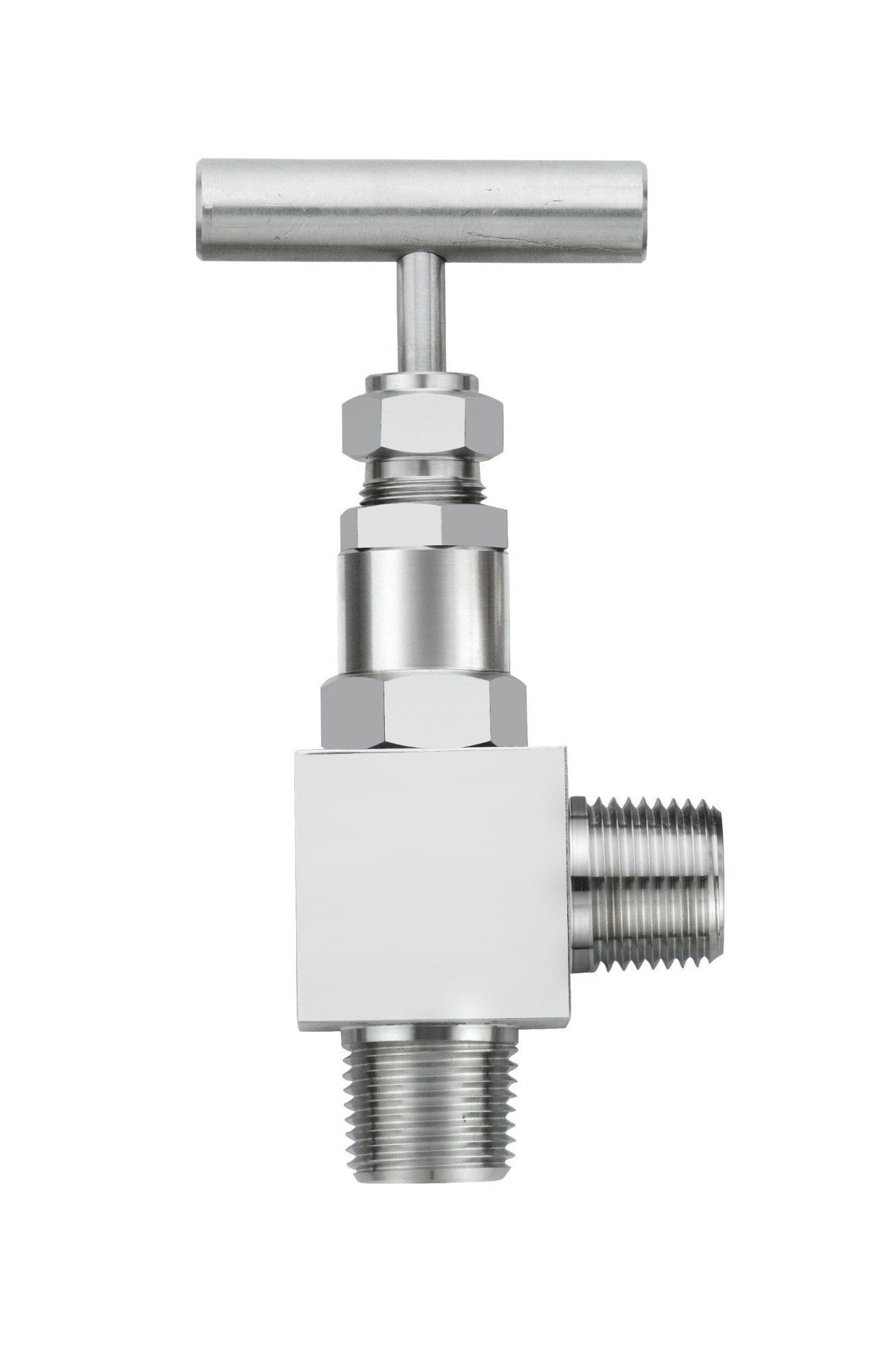

Description: An Angle Needle Valve is similar to a straight needle valve but features an angled flow path, typically at a 90-degree angle. The flow of fluid enters and exits the valve at an angle, which helps in reducing the space required for installation and provides flexibility in various pipeline layouts. Like the straight needle valve, it is designed to offer precise control over the flow of liquids or gases, making it ideal for applications where space constraints or complex piping systems exist. The angled design ensures that the valve can be installed in systems with limited installation space while still maintaining accurate flow control.
Specifications and Features:
| Specification | Details |
|---|---|
| Valve Type | Angle Needle Valve |
| Material | Stainless Steel, Brass, Carbon Steel |
| Pressure Rating | Up to 6,000 psi (varies by material) |
| Temperature Rating | -65°F to 400°F (-54°C to 204°C) |
| Connection Type | Threaded, Flanged, or Socket Weld |
| Flow Range | Low Flow to High Flow |
| Port Size | 1/8" to 1" (or custom sizes available) |
| Actuation | Manual Handwheel or Actuated (depending on model) |
| Seal Type | PTFE, PEEK, or metal seals |
| Applications | Fluid control in confined spaces, laboratory systems, gas and chemical handling |
Features:
Angled design allows for easier installation in tight spaces
Precise flow regulation with a fine-tuned needle mechanism
Available in various materials for different fluid types
Compact and space-saving design
Long-lasting and reliable with minimal maintenance
Suitable for high-pressure, high-temperature systems
